Sine Wave test
Hi guys
I've just conducted a test with sine waves at different frequencies and found something interesting with the vst oscilloscope
At High frequencies, around 10kHz and above there seems to be extreme amplitude modulation with the frequency in question. There also seems to be errors in the smoothness of the sine wave too. Not sure that's a graphical thing.
The Low Mids are very stable
The Upper mIds, the modualation is slight.
The lows look clipped but I guesss that's graphics
Could anyone expand or tell me which measurement tools are true and how to read them properly?
Thanks
I've just conducted a test with sine waves at different frequencies and found something interesting with the vst oscilloscope
At High frequencies, around 10kHz and above there seems to be extreme amplitude modulation with the frequency in question. There also seems to be errors in the smoothness of the sine wave too. Not sure that's a graphical thing.
The Low Mids are very stable
The Upper mIds, the modualation is slight.
The lows look clipped but I guesss that's graphics
Could anyone expand or tell me which measurement tools are true and how to read them properly?
Thanks
Re: Sine Wave test
You sure you're not seeing the effects of dither?
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
Well it’s an internal test so I don’t think dither applies.
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
Would a power supply create this phenomenon?
Re: Sine Wave test
It's difficult to say without examples and your process. You can attach files to posts...
Re: Sine Wave test
does the music sound bad?
Re: Sine Wave test
Have you recorded the waveform and observe it in a wave editor?
Re: Sine Wave test
Examples please. We can analyze on our end and report our feedback.
Re: Sine Wave test
Can only guess since I don't know neither what you use to generate or analyze the sine wave.
But generally, unless the oscilloscope applies a sinc function, high frequencies will become jagged since unlike the output from the DAC which has sinc applied, it will just draw a straight line between samples.
For exampe it looks like oscilloSCOPE doesn't apply sinc, so high frequencies will not look right at all.
However oscilloscope in bitwig grid does, and will show the waveform as it will be coming out from the DAC, not as numerically represented in the data.
But generally, unless the oscilloscope applies a sinc function, high frequencies will become jagged since unlike the output from the DAC which has sinc applied, it will just draw a straight line between samples.
For exampe it looks like oscilloSCOPE doesn't apply sinc, so high frequencies will not look right at all.
However oscilloscope in bitwig grid does, and will show the waveform as it will be coming out from the DAC, not as numerically represented in the data.
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test

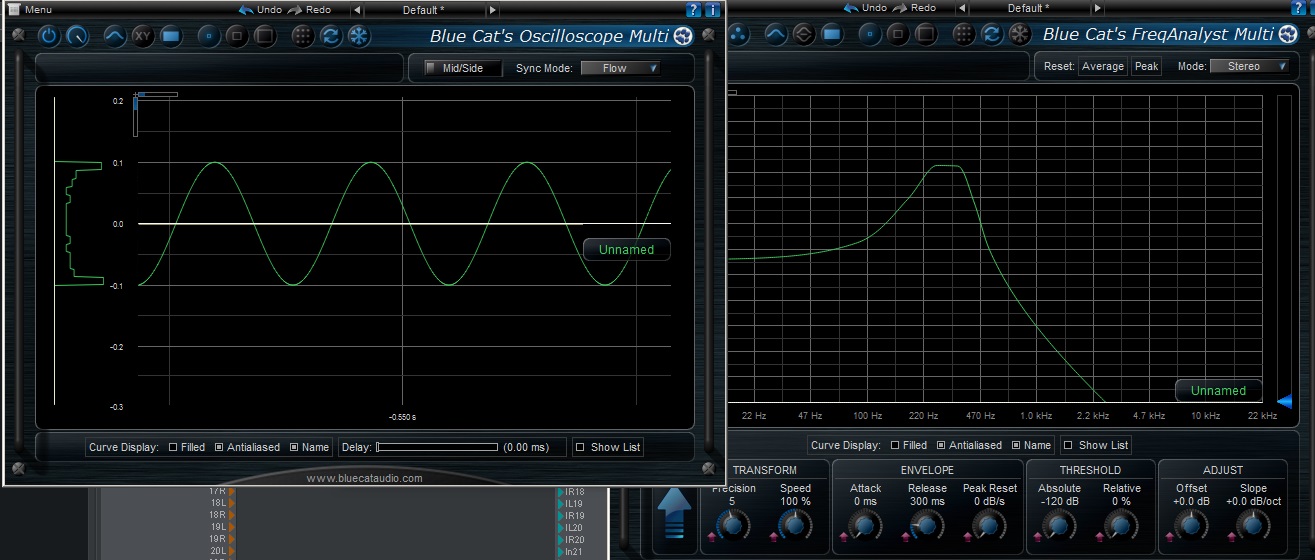

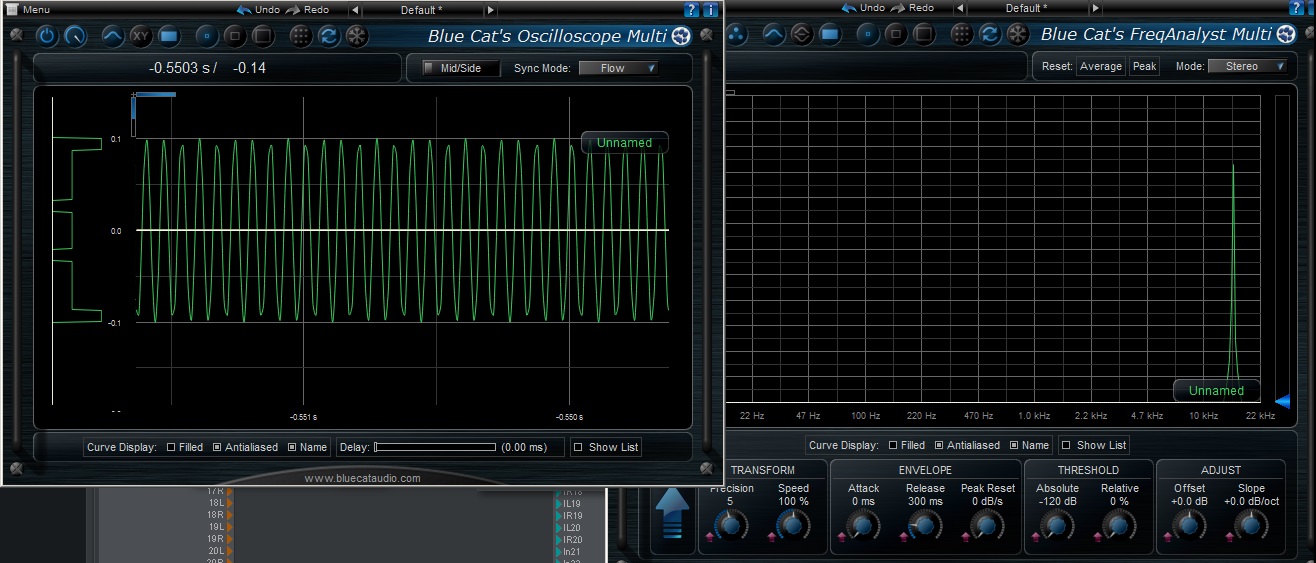

Here's some pics that show you what I mean:valis wrote: Thu Jan 28, 2021 4:45 pm It's difficult to say without examples and your process. You can attach files to posts...
I tried it at 96kHz and it explains it's a samplerate problem.
- Attachments
-
- 300 Hz - 41.kHz SR.jpg (204.17 KiB) Viewed 3764 times
-
- Smoother response at 96kHz
- 15kHz - 96kHz SR.jpg (230.87 KiB) Viewed 3764 times
-
- 15kHz - 41.kHz SR.jpg (228.49 KiB) Viewed 3764 times
-
- 11kHz - 41.kHz SR.jpg (239.86 KiB) Viewed 3764 times
-
- 1kHz - 41.kHz SR.jpg (194.42 KiB) Viewed 3764 times
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
Not bad Gary but I've been testing it for an hour or so and at 96kHz the Highs and Lows are much cleaner and crispier. Pulsar is stunning in its quality still. It's a shame 3 PCI's cant run 96kHz smoothly for me but my system is old. I will upgrade to my MSI and see if it performs better in the future.
My guess is that the "brittle" sound comes from those highs around 10kHz when pushed hard, which people talk of in the digital domain.
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
I've used the Pulsar Scope control room to generate the sine wave internally Spindrift and also a vst one. They both produce the same results. I haven't tried D/A conversion or a D/D Loopback.Spindrift wrote: Fri Jan 29, 2021 7:06 am Can only guess since I don't know neither what you use to generate or analyze the sine wave.
But generally, unless the oscilloscope applies a sinc function, high frequencies will become jagged since unlike the output from the DAC which has sinc applied, it will just draw a straight line between samples.
For exampe it looks like oscilloSCOPE doesn't apply sinc, so high frequencies will not look right at all.
However oscilloscope in bitwig grid does, and will show the waveform as it will be coming out from the DAC, not as numerically represented in the data.
Could you expand more on how the software gives us our information and if graphics cards play any part in it too? Any pointers or links would be appreciated in learning how things work.
Thanks
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
Yes I've tried analysing it with GOST and it shows sine wave amplitude modulation clearly at high frequencies unless sidebands are creating that. I'm not sure, maybe you experts could say.
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
No I'll try it.fra77x2 wrote: Thu Jan 28, 2021 8:11 pm Have you recorded the waveform and observe it in a wave editor?
Re: Sine Wave test
Yes, looking at you picture this is what is happening.Music Manic wrote: Fri Jan 29, 2021 2:35 pmI've used the Pulsar Scope control room to generate the sine wave internally Spindrift and also a vst one. They both produce the same results. I haven't tried D/A conversion or a D/D Loopback.Spindrift wrote: Fri Jan 29, 2021 7:06 am Can only guess since I don't know neither what you use to generate or analyze the sine wave.
But generally, unless the oscilloscope applies a sinc function, high frequencies will become jagged since unlike the output from the DAC which has sinc applied, it will just draw a straight line between samples.
For exampe it looks like oscilloSCOPE doesn't apply sinc, so high frequencies will not look right at all.
However oscilloscope in bitwig grid does, and will show the waveform as it will be coming out from the DAC, not as numerically represented in the data.
Could you expand more on how the software gives us our information and if graphics cards play any part in it too? Any pointers or links would be appreciated in learning how things work.
Thanks
At the very foundation of digital audio is the Nyquist theorem. It states that "a sinuisoidal function in time or distance can be regenerated with no loss of information as long as it is sampled at a frequency greater than or equal to twice per cycle".
If you just glance over it, it might seems intuitive and somewhat obvious. A waveform at 20kHz the frequency between the valleys and peaks in the signal will be 40kHz...makes sense.
However when you think about it, it seems wrong. First of all it would be a triangle wave not a sine, as as you know a triangle contains harmonics, and there should be "no loss of information", so we should get a perfect reproduction, ie a perfect sine. And if it is not exactly half the frequency the waveform will be very jagged, like you see in your pictures.
But the important part is that sound is a "sinuisoidal function". When the signal goes thru the DAC a sinc function will be applied, interpolating between the values in a sinuisoidal fashion.
Some oscilloscopes and editors will display a visual representation including the application of a sinc function, but most wont and instead draw straight lines between each sample.
Here is a video visualizing the concept:
https://www.youtube.com/watch?v=-jCwIsT0X8M
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
I’ve read up all week on what you’ve pointed out and that indeed is what’s happening. Is there an software oscillator that gives a DFT plot?Spindrift wrote: Fri Jan 29, 2021 11:41 pmYes, looking at you picture this is what is happening.Music Manic wrote: Fri Jan 29, 2021 2:35 pmI've used the Pulsar Scope control room to generate the sine wave internally Spindrift and also a vst one. They both produce the same results. I haven't tried D/A conversion or a D/D Loopback.Spindrift wrote: Fri Jan 29, 2021 7:06 am Can only guess since I don't know neither what you use to generate or analyze the sine wave.
But generally, unless the oscilloscope applies a sinc function, high frequencies will become jagged since unlike the output from the DAC which has sinc applied, it will just draw a straight line between samples.
For exampe it looks like oscilloSCOPE doesn't apply sinc, so high frequencies will not look right at all.
However oscilloscope in bitwig grid does, and will show the waveform as it will be coming out from the DAC, not as numerically represented in the data.
Could you expand more on how the software gives us our information and if graphics cards play any part in it too? Any pointers or links would be appreciated in learning how things work.
Thanks
At the very foundation of digital audio is the Nyquist theorem. It states that "a sinuisoidal function in time or distance can be regenerated with no loss of information as long as it is sampled at a frequency greater than or equal to twice per cycle".
If you just glance over it, it might seems intuitive and somewhat obvious. A waveform at 20kHz the frequency between the valleys and peaks in the signal will be 40kHz...makes sense.
However when you think about it, it seems wrong. First of all it would be a triangle wave not a sine, as as you know a triangle contains harmonics, and there should be "no loss of information", so we should get a perfect reproduction, ie a perfect sine. And if it is not exactly half the frequency the waveform will be very jagged, like you see in your pictures.
But the important part is that sound is a "sinuisoidal function". When the signal goes thru the DAC a sinc function will be applied, interpolating between the values in a sinuisoidal fashion.
Some oscilloscopes and editors will display a visual representation including the application of a sinc function, but most wont and instead draw straight lines between each sample.
Here is a video visualizing the concept:
https://www.youtube.com/watch?v=-jCwIsT0X8M
Thanks for information btw.
-
- Posts: 1743
- Joined: Wed May 15, 2002 4:00 pm
- Contact:
Re: Sine Wave test
I’ve just tried re-recording the sine wave at 10kHz through the analogue I/O and it was a perfect sine wave.fra77x2 wrote: Thu Jan 28, 2021 8:11 pm Have you recorded the waveform and observe it in a wave editor?
It is purely a graphical mis-representation.
You learn something new every day.
