ProWave Patch

[yayajohn]

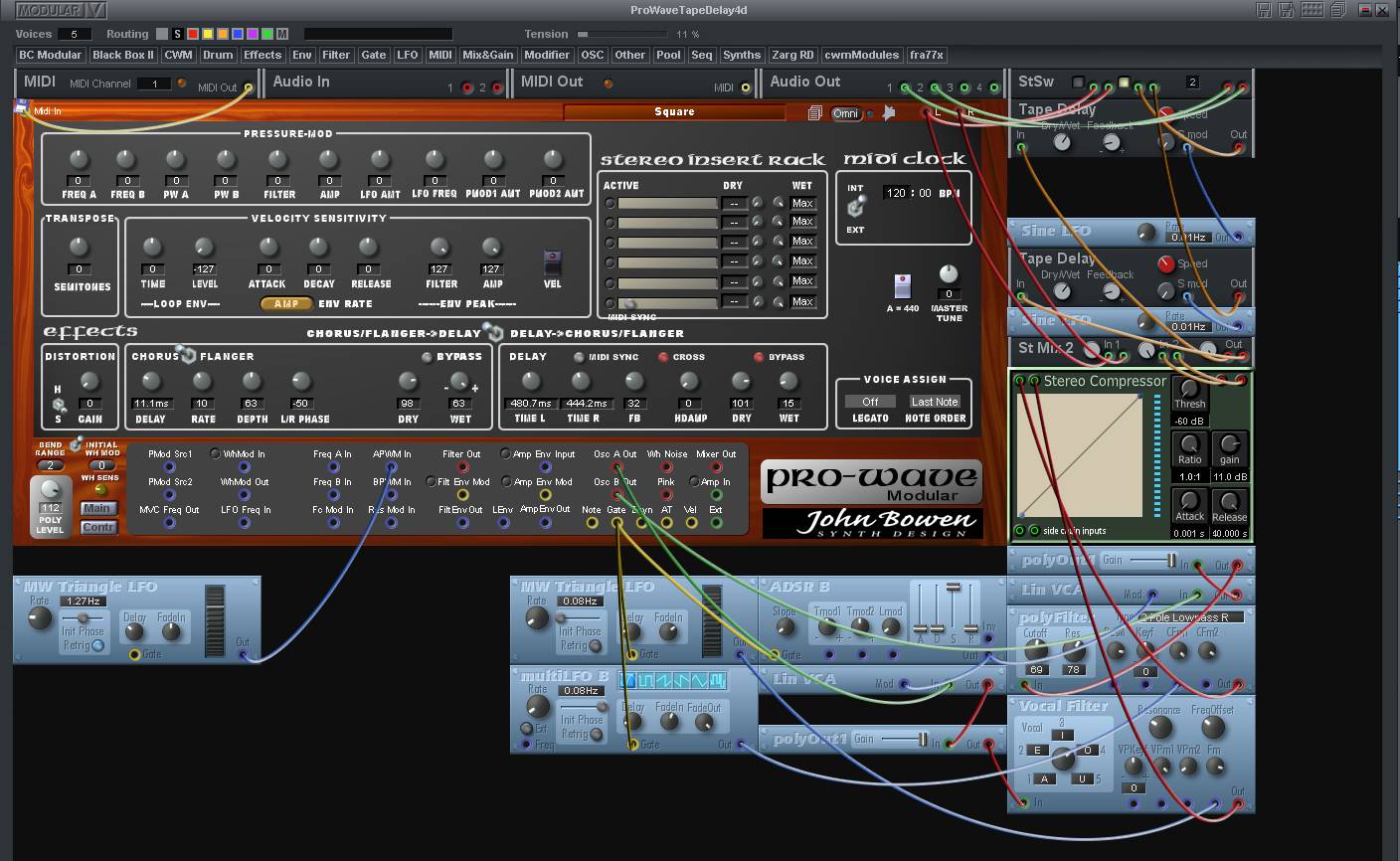

Hi, I have a patch i'm working on that keeps crashing whenever I try to move the modules around, so i was wondering if someone could load this up and let me know how it works. I need to know if it's the patch or my system. I suspect it might be those Tape Delay modules. You will need JB's ProWave (modular) obviously, Xite-1 and ModIV



Deleted.


Thanks

Dan

[djmicron]

bluescreen here.
It is the tape delay causing issues on the xite.

If you have the flexor package, there are interesting granular modules, such as the pitcher engine FB that is very good for tempo/pitch modulated delay effects.

[dawman]

Cool Yayajohn.
I think you need the current drivers that Herr Schmidt sent us to use a pair of Tape Delays with such a beast. I have no access to my rig just yet, but using 2 x Tape Delays is definately the problem if one gets a blud screen.

[yayajohn]

Ok yeah I figured. Those blasted things, I have a love/hate relationship with them. (I hate that I love them so much lol)
I have been using them as an Aux effect for quite a while but they don't seem to like this config as this is the second time i've built this patch from scratch. I could probably just send the audio out to the Aux effect with the Tape Delay and that would pretty much do the same thing.

dj; thanks for trying this, I'll try some other delay, don't have Flexor yet, maybe someday.

JV, I think I've got the most current files you sent. I dunno I'll go back and double check.

Thanks

Dan

[yayajohn]

Ok, I got rid of the Tape Delay and added some pan. Seems pretty stable now. Try it out if you dare. I'm a hack at this so if something doesn't make sense to you then by all means speak up, any hints/suggestions would be greatly appr.
Dan

ProWaveModPan2.zip

(1.2 MiB) Downloaded 582 times

fixed the poly out routing as jhulk suggested

[jhulk]

you got bcmodular try using the clm and creating a delay using the mod delay modules i made a bbd the same way

and phaser modules

and im currently making some asr10 algo fx which i like one is a ddl chorus reverb which makes anything go through it sound lush

[jhulk]

can i also ask you why you went poly out to the 2 filter modules making them mono fx

and why the vca are before the filters and no vca after the filters

i would of done it osc a and b to the filter module then to the vca then to poly out modules then to the compressor

the filters would be poly then per voice

[jhulk]

ok im building a stereo tape delay module in the clm for you to try it fits on one dsp nicely

and i have built in pingpong feedbacks for the left and right channels also

it has speed for the modulation delay time regen left and right and cross delay regen left and right and

dry/wet mix left and right

i will upload for you in a while if you like it i will make it into an sdk dsp optomised version

[jksuperstar]

You can open the RD modular shell, build the poly filter in that, and load it into the filter slot.

[yayajohn]

ok great! Thanks for the tips guys. I will continue to work on this. jhulk thanks, that will be interesting to see.
