LFOtoMIDI, a simple CC#74 LFO generator

Post by at0m »

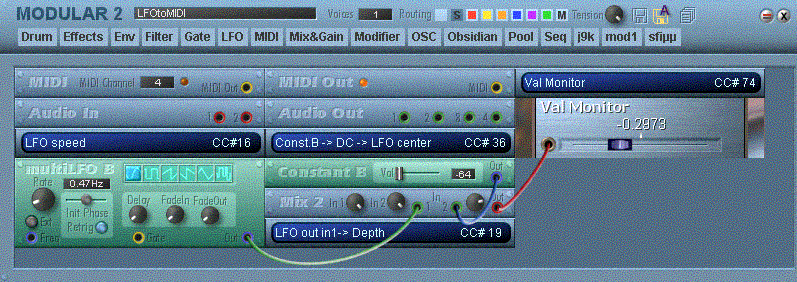

Original file probably lost, but recreation is easy from the pic. The same can be achieved with j9k's MIDI modules. Here's one with Val Monitor+
Attachments
Last edited by at0m on Sat Mar 02, 2019 3:52 am, edited 1 time in total.
more has been done with less
https://soundcloud.com/at0m-studio
Top
User avatar
at0m
Posts: 4743
Joined: Sat Jun 30, 2001 4:00 pm
Location: Bubble Metropolis
Contact:
Contact at0m

Post by at0m »

Send CC# 16, 36 and 19 to control LFO speed, LFO center and LFO depth. The modular sends out CC#74. Connect a synth to it merging with Seq/HW MIDI Source and assign it's filter cutoff to incoming CC#74. As you please, you could add MVC for retriggering etc. Have fun!
